Ellicott · Mapping Intelligence

Deeds plotted. Exhibits drawn.

Two tools for right-of-way, survey and title teams. The Deed Plotter plots a deed, checks whether it closes, and flags it when it doesn't. Legal Exhibits turns your parcel and easement delivery into a finished exhibit for every parcel on the route.

In
  • Deed PDF or scan
  • Phone photo
  • Word
  • Plain text
  • GeoPackage
  • File Geodatabase (zip)
  • Shapefiles (zip)
  • CSV line list
Out
  • PDF exhibits
  • DXF / CAD package
  • KMZ
  • Shapefiles
  • GeoPackage
  • GeoJSON
  • CSV results table
  • Esri traverse file
Legal Exhibits · Negotiation Sketches

Upload once. Validate. Generate. Download.

One parcel and easement delivery in, a complete exhibit package out, with a checkpoint in the middle so nothing is drawn against data you haven't seen first.

01 · Upload

Send your delivery

A GeoPackage, or a zip of a File Geodatabase or shapefiles, with your parcels and easement footprints.

02 · Validate

Checked before anything runs

Ellicott finds the coordinate zone, layers and parcel identifiers, then scores the delivery's geometry.

03 · Generate

Confirm, then draw

See what was found and the estimated fee before processing starts. Preview sample sheets free first.

04 · Download

Take the whole package

An exhibit for every affected parcel, the acreage and length table, and the GIS and CAD files you asked for.

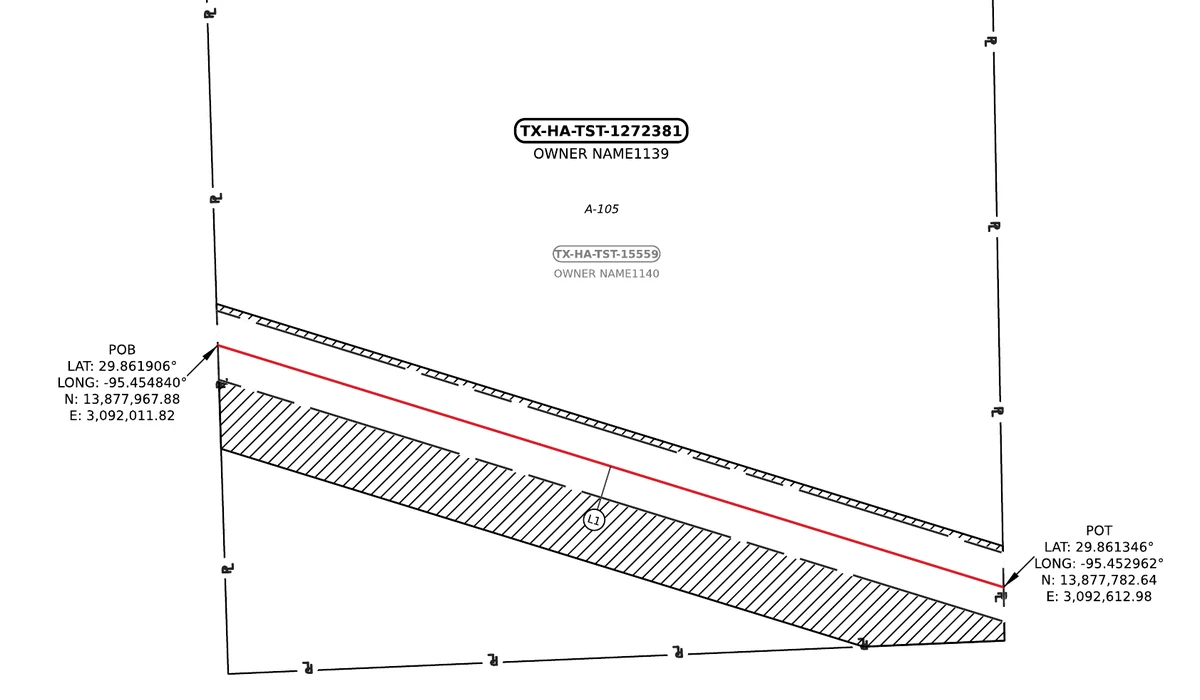

The sheet

Drawn from validated geometry, parcel by parcel.

Each sheet carries the easement and workspace areas, the centerline length, a line table, crossings and detail frames where the geometry needs them. Legal Exhibits add a metes-and-bounds description written from the same boundary.

More on Legal Exhibits →
A draft exhibit for a licensed surveyor: a bent easement crossing an access road and parcel boundaries, hatched temporary workspace, additional workspace, a line table, detail frames and a title block.
Deed Plotter

Read. Check. Place. Assemble.

Keep the evidence in view, from the words behind each call and the figure's closure to the tract's place on the ground.

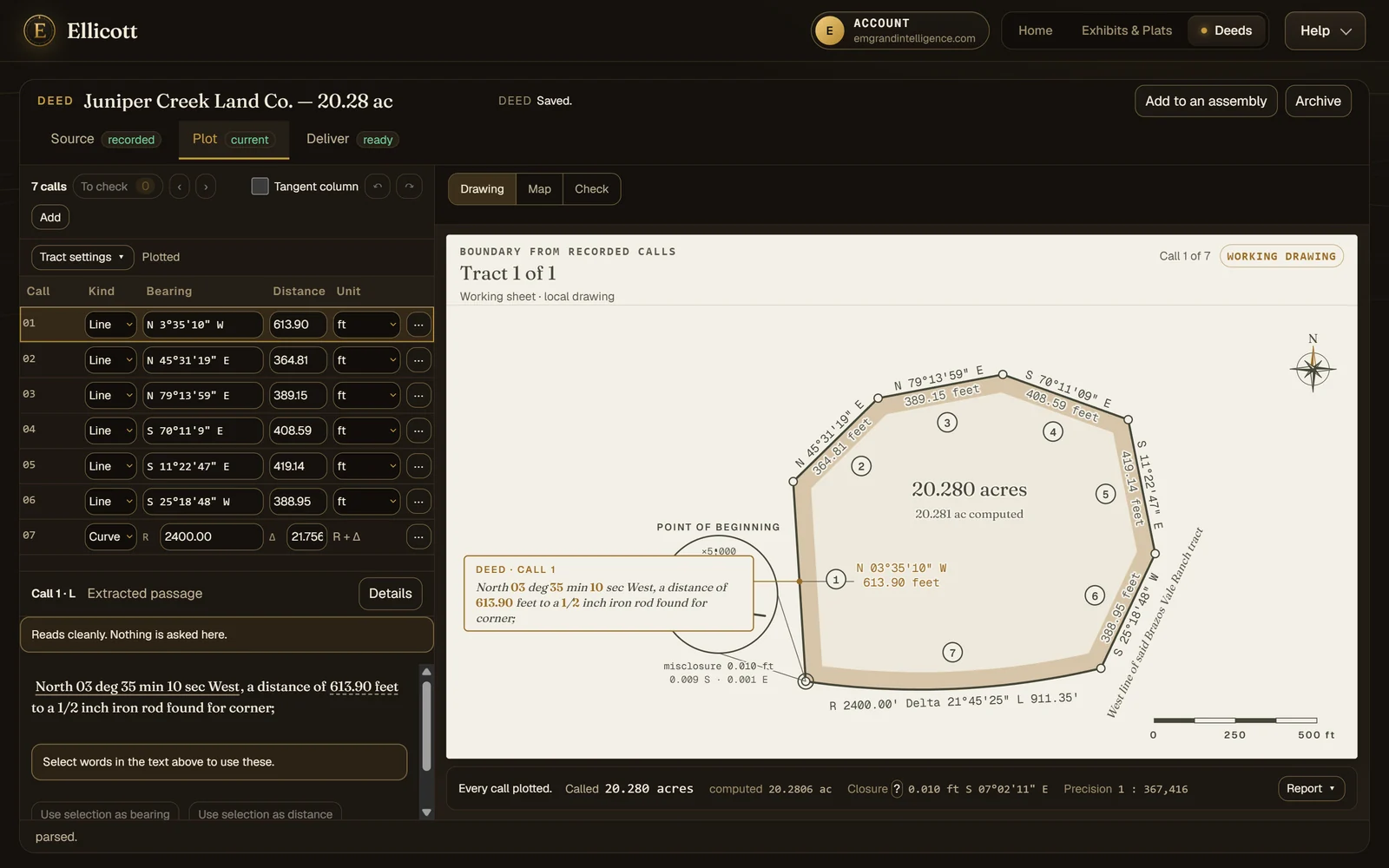

01 · Read

Every call beside its source

Scans and photos become a call table, with the page beside what was read. A harder description stops at the call that needs you.

02 · Check

See whether it closes

See closure error and computed area against the deed's acreage. When a figure misses, search for a single call that would close it. A deed that doesn't close as written stays flagged, and calls change only when you change them.

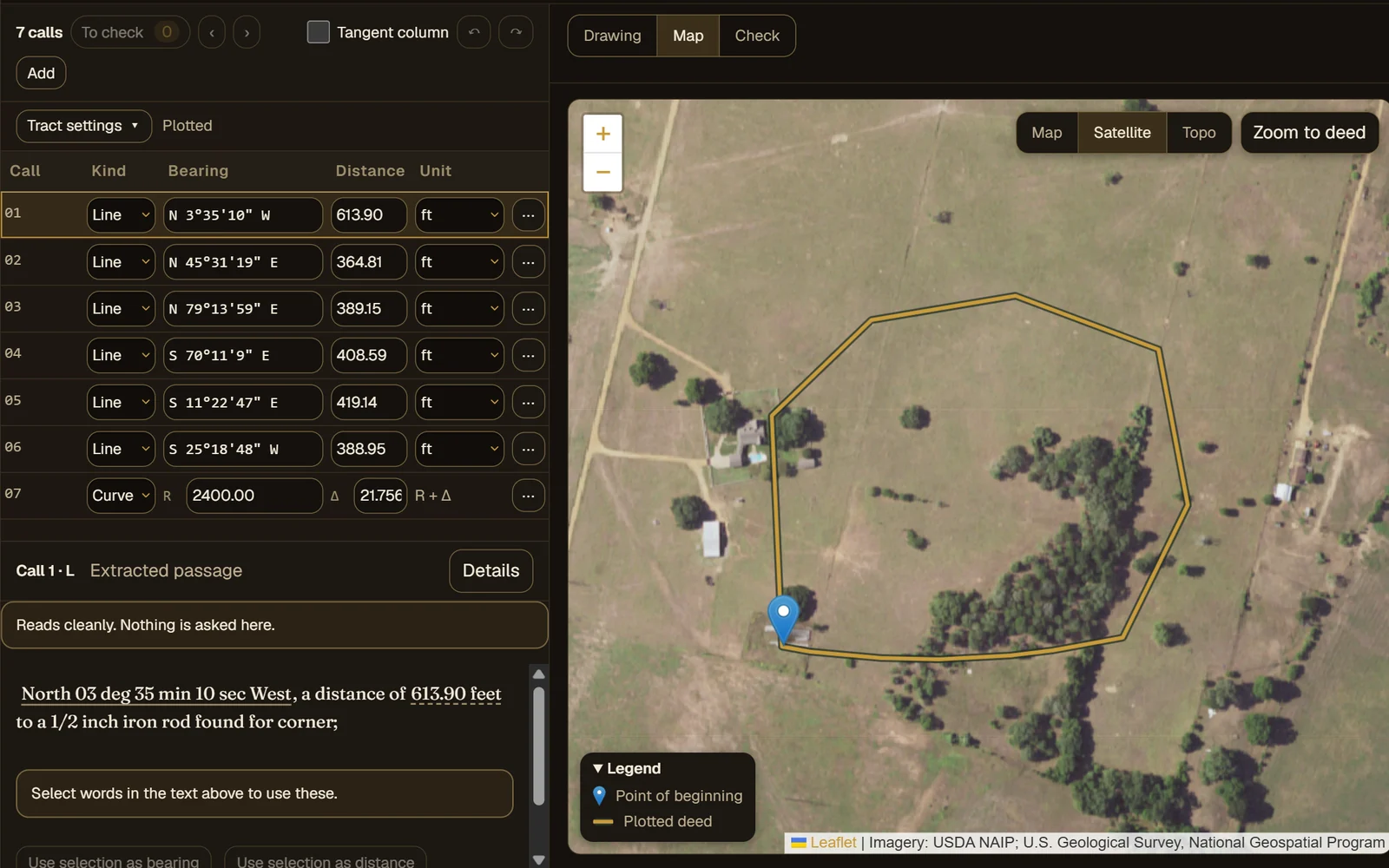

03 · Place

Set the point of beginning

Click the map, type coordinates, or use the coordinates stated in the deed to draw the tract in its state plane zone over aerial imagery.

04 · Assemble

Bring neighboring deeds together

Snap shared corners or lines, or fit a deed to found monuments. Check gaps and overlaps with their areas and the senior deed named.

04 · Assemble

A whole right of way on one frame.

Bring in a title package and Ellicott finds the lines neighboring deeds share. Accept the joins and each tract takes its place from the one beside it, so a corridor goes together without placing every deed by hand.

More on the Deed Plotter →
Five neighboring demonstration tracts along a county road assembled on one frame, each labeled with its name and acreage, beside the assembly's tract list.
Demonstration deeds with fictional names. A deed plot is a working drawing, not a boundary survey.
About

Software that shows its work, for people who sign theirs.

Emgrand Intelligence Group builds Ellicott, mapping software for right-of-way, survey and title teams. It is built on three rules.

Show the work

Every deed call sits beside the words it was read from, and every exhibit measurement is computed from the geometry on the sheet. You can check any number without trusting us.

No AI model reads your documents

Deeds are read by recognition software on our own servers. They are never sent to an AI model or an outside service to be read.

A draft for the professional

Ellicott drafts; a licensed surveyor verifies, signs and seals. Nothing it produces is a boundary survey or a substitute for one.

Questions about the company or the product: support@emgrandintelligence.com

Start with a deed or a delivery.

Plot and export your first deed free, or preview exhibit sheets from your own data. No install; you pay only for the exports you buy.

Start free
